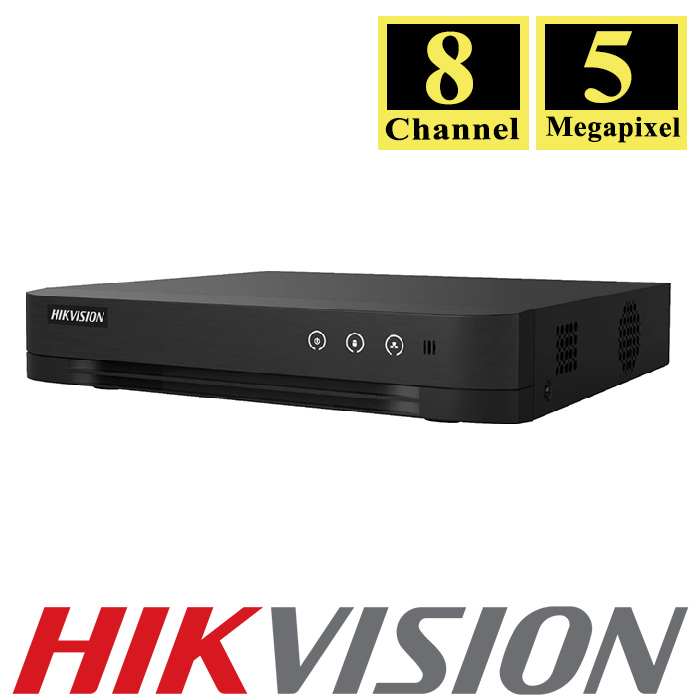

Hikvision DS-7208HGHI-K1 8Ch 5MP 1080p Lite 1U H.265 DVR

The DVR-Hikvision-DS-7208HGHI-K1 is a powerful and versatile digital video recorder designed for professional surveillance systems. With its advanced features and robust performance, it provides reliable video recording and management for various security applications.

With eight channels, the DS-7208HGHI-K1 allows for simultaneous recording and monitoring of multiple cameras, providing comprehensive coverage for surveillance needs. It supports H.265+ video compression technology, which significantly reduces bandwidth and storage requirements without compromising video quality.

Features:

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 10-ch IP camera input (up to 5 MP)
• Up to 1080p Lite@15 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

Hikvision DS-7208HGHI-K1 Specifications:

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF
• For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
• For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Video And Audio

• IP Video Input

  2-ch (up to 10-ch)

  Up to 5 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

• 8-ch
• BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS Input: Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• Video Output Mode HDMI/VGA simultaneous output

Audio Input

• 1-ch RCA (2.0 Vp-p, 1 KΩ)
• 8-ch via coaxial cable

• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way AudioReuse the first audio input
• Synchronous Playback8-ch

Network

• Remote Connection: 64
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
• Total Bandwidth:72 Mbps
• Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to  4 TB capacity for each disk
• USB Interface: Rear panel: 2 × USB 2.0
• Alarm In/Out:N/A

General

• Power Supply: 12 VDC, 1.5 A
• Consumption: ≤ 17 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
• Weight:  ≤ 1 kg (without HDD, 2.2 lb.)
