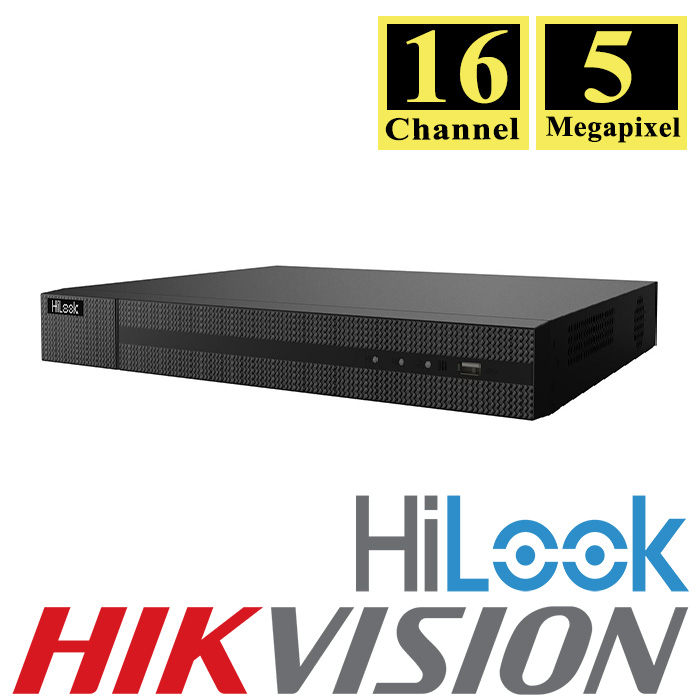

The HiLook DVR-216U-K2 is a high-quality and reliable digital video recorder designed for surveillance systems. With its advanced features and user-friendly interface, it offers efficient and effective video recording and management capabilities.
Equipped with 16 channels, the DVR-216U-K2 allows for simultaneous recording and monitoring of multiple cameras, providing comprehensive coverage for your surveillance needs. It supports H.265+ video compression technology, ensuring efficient storage utilisation without compromising on video quality.
The The HiLook DVR-216U-K2 is a high-quality and reliable digital video recorder designed for surveillance systems boasts a user-friendly interface that makes navigation and configuration a breeze. It supports various recording modes, including continuous, scheduled, and motion-based recording, providing flexibility and customisation options to suit your specific requirements.
Compatibility is not an issue with the DVR-216U-K2, as it works seamlessly with a wide range of HiLook and third-party cameras. It supports high-resolution recording, delivering clear and detailed video footage for accurate surveillance and analysis.
With HDMI and VGA video outputs, the DVR-216U-K2 enables easy connectivity to monitors and displays for real-time video monitoring and playback. Additionally, remote access is possible through mobile devices or computers, allowing you to monitor your surveillance system from anywhere at any time.
The DVR-216U-K2 offers advanced features such as motion detection, alarm notifications, and PTZ control, enhancing your surveillance capabilities. It is designed for 24/7 operation, ensuring continuous video recording and system stability. The built-in SATA interface allows for expandable storage options, ensuring extended recording periods.
In conclusion, the HiLook DVR-216U-K2 is a reliable and feature-rich digital video recorder that excels in surveillance systems. With its advanced recording capabilities, user-friendly interface, compatibility with various cameras, and remote access options, it provides an efficient and effective solution for video recording and management in a wide range of surveillance applications.
Features:
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Long distance transmission over UTP and coaxial cable
- H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
- Encoding abilty up to 8 MP @ 8 fps
- Two HDDs for continuous video recording
- Smart search for efficient playback.
HiLook By Hikvision DVR-216U-K2 Specifications:
Perimeter Protection
- Line Crossing Detection/Intrusion Detection
- Enhanced VCA mode on: 16-ch
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
- Video Bitrate: 32 Kbps to 10 Mbps
- Dual-Stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
Video And Audio
- IP Video Input
- 8-ch (up to 24-ch)
Enhanced IP mode on:
- 16-ch (up to 32-ch), each up to 4 Mbps
- Up to 8 MP resolution
- Support:Â H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
- 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS Input :Â PAL/NTSC
- HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
- 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- 16-ch via coaxial cable
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Synchronous Playback16-ch
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF
- Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity: Up to 12TB capacity for each disk
USB Interface
- Front panel: 1 × USB 2.0
- Rear panel: 1 × USB 3.0
General
- Power Supply: 12 VDC, 5 A
- Consumption: ≤ 25 W (without HDD)
- Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Weigh: t≤ 2 kg (4.4 lb.)
