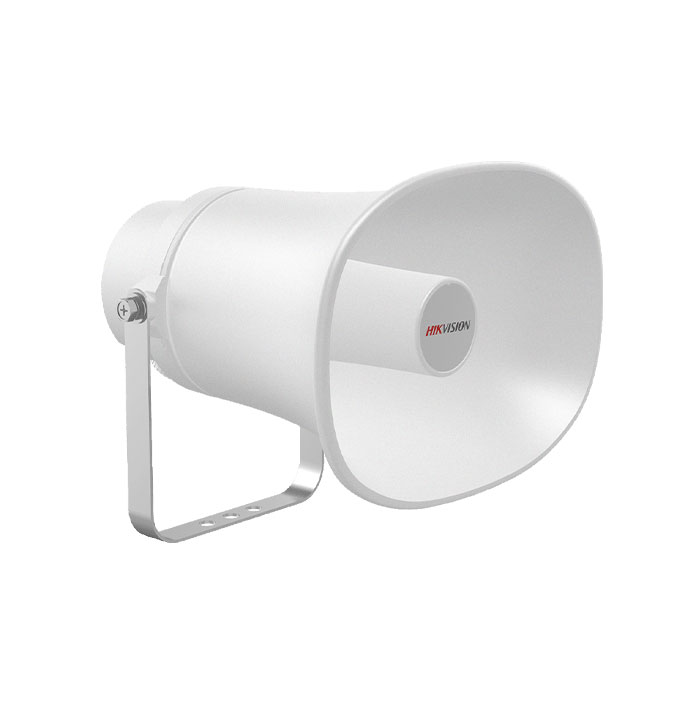

Hikvision DS-PA0103-B White IPspeaker 118 dB

This Hikvision DS-PA0103-B IP Speaker sits on the PoE power supply, and it is a very effective supplement to provide audio notifications to the surveillance environment, providing real time one-way audio from surveillance centre to the environment, and can also broadcasting pre-recorded audio when certain events are triggered.

User can also associate camera scenes with the speaker broadcast group to initiate audio notification right under camera view.

Hikvision DS-PA0103-B Specifications:

• Network broadcast: playing audio file or real-time audio stream
• SD card broadcast: playing audio files from SD card
• Supports two-way talk between remote computer and horn speaker.
• On-the spot sound collection: remote computer can collect the real-time sound around the horn speaker.

Parameters

• Network Interface : 10/100Base-TX self-adaptive network, RJ45 interface
• Network Protocol : TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
• Audio Protocol : MP3, G.711a/u, G.722
• Storage : Micro SD Card, up to 32 GB
• MIC Input : 0.2 Vrms
• Speaker Output : 8 Vrms
• Max Sound Pressure Level 118 dB
• Power Input PoE (IEEE 802.3af), maximum 13 W
• Approvals EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024,EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,
  ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,
  KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,
  IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2,
  IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64,
  IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,
  NEMA 250 Type 4X, CNS 13438
• Colour : White
• Approx. 1.5 kg (3.31 lb.)
• Material Casing : aluminium alloy – Rear cover: stainless steel
• Dimension With bracket: 242 mm × 182 mm × 338.5 mm ( 9.53″ × 7.17” × 13.33”)
  Without bracket: 242 mm × 182 mm × 250 mm ( 9.53 × 7.17” × 9.84” )”
• Power Consumption< 1 W (without sound), maximum 13 W (producing sound)
• Protection Level IP67
• Operating Temperature : -40 °C to 60 °C (-40 °F to 140 °F)
