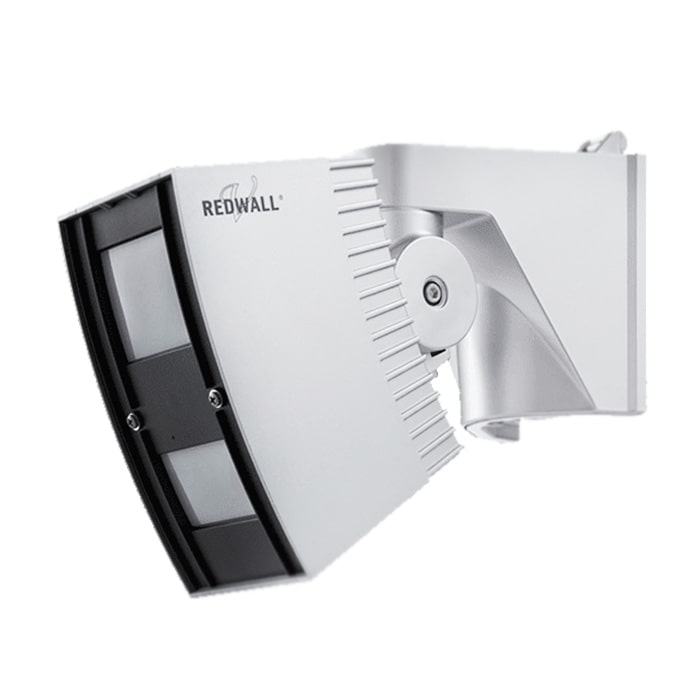

The SIP-3020 is part of the Redwall-V series which is a series of long range pir motion sensors designed for use in small and mid-sized outdoor areas. The SIP 3020 features an intelligent detection system that uses data on the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity.
Mechanisms for easy installation enable accurate adjustment of the detection area at setup, which results to a more reliable operation. The optional AVF-1 Area View Finder allows the installer to visually identify the detection area.
Optex REDWALL SIP-3020 Specifications::
- 30×20 m intelligent PIR for approach detection
- Three dual pyro-elements with patented Double Conductive Shielding
- Designed to trigger CCTV systems
- Two independent detection zones far/near
- AIR antimasking and vandal-resistant
- Passive infrared detection method
- Dimensions 227 x 102 x 266 mm
Designed to trigger CCTV systems
The REDWALL SIP series is designed to be connected to PTZ or fixed dome cameras and trigger the CCTV system when an intrusion occurs. The SIP-3020 has two independent detection zones, far and near zones, with independent sensitivity selection, that can trigger the right camera pre-sets and provide the best view of the scene to local security staff or remote monitoring stations.
Weather and vandal-resistant
The SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity is adjusted automatically to the ambient temperature and illuminance, and they have a IP65 rating for the main unit. They also vandal-resistant, featuring a polycarbonate housing, an accelerometer to detect if the sensor position has been tampered with and an active infrared antimasking.
