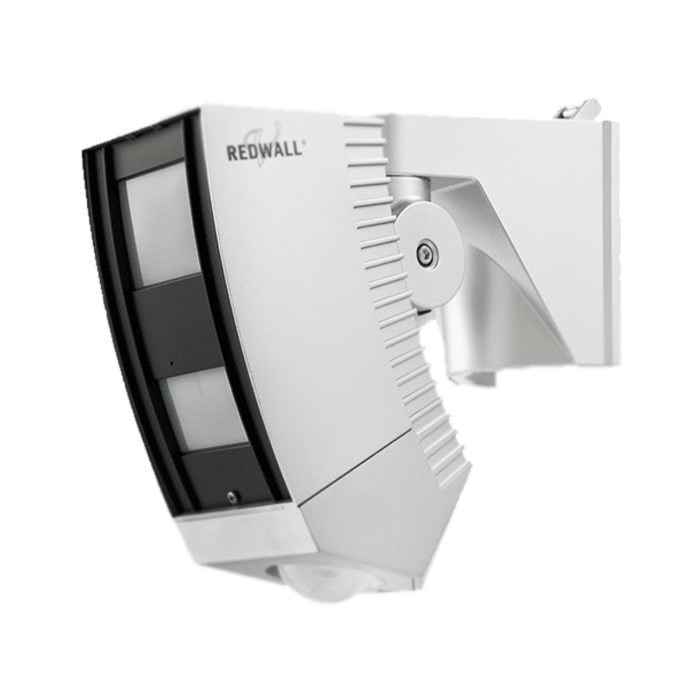

The SIP-404/5 is designed for detecting outdoor applications to trigger video transmission systems and PTZ camera control. Detectors in this series have an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity.
They are also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit. The SIP-404/5 is a hardwired model providing a detection range of 40m by 10m (LxW) with an additional creep zone detection area of 6x9m wide ideal to cover long and realtively wide sites areas.
Optex REDWALL SIP-4010 Specifications:
- Advanced detection algorithm
- Designed to trigger CCTV systems
- Three independent detection zones far/near/creep
- Active infrared antimasking and vandal-resistant
- Patented Double Conductive Shielding
- Advanced detection algorithm
Designed to trigger CCTV systems
The REDWALL SIP series is designed to be connected to PTZ or fixed cameras and trigger the CCTV system when an intrusion occurs. The SIP-404/5 has two independent detection zones, far and near zones, with independent sensitivity selection and individual output settings, for the creep zone, which can trigger camera pre-set and provide the best view of the scene to local security staff or remote monitoring stations.
Weather and vandal-resistant
REDWALL SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance, they feature an IP65 rating for the main unit. The SIP series is vandal-resistantant all SIP products are built with polycarbonate housing, featuring an accelerometer to detect whether or not the sensor position has been tampered with.
