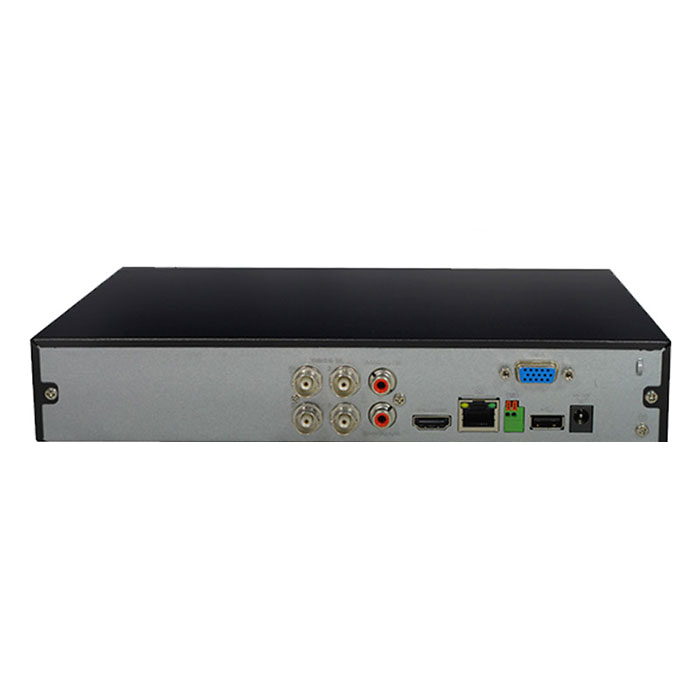

Prolux PXD-5104HS-X1 4 Channel 1080p Penta-brid DVR Recorder

Prolux 4 Channel Penta-brid 1080P Compact 1U Digital Video Recorder. Supports max 6 channels IP camera inputs, each channel up to 6MP; Max 24Mbps incoming bandwidth.

Prolux PXD-5104HS-X1 Specifications:

• H.265+/H.265 dual-stream video compression
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Smart Search and Intelligent Video System

System

• Main Processor Embedded Processor
• Operating System Embedded LINUX

Video and Audio

• Analogue Camera Input: 4 Channel, BNC
• HDCVI Camera: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
• AHD Camera:  5MP, 4MP, 1080P@25/30, 720P@25/30fps
• TVI Camera: 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera:  PAL/NTSC
• IP Camera Input: 4+2 Channel, each channel up to 6MP
• Audio In/Out:  1/1, RCA
• Two-way Talk:  Reuse audio in/out, RCA

Recording

• Compression:  H.265+/H.265/H.264+/H.264
• Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
• Record Rate: Mainstream: the 1st channel 5M-N(1~10fps), other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/
• D1/CIF (1~25/30fps)
• Sub stream: D1/CIF(1~15fps)
• Bit Rate:  32Kbps ~ 6144Kbps Per Channel
• Record Mode:  Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
• Audio Compression: AAC(only for the 1st channel), G.711A, G.711U, PCM
• Audio Sample Rate:  8KHz, 16 bit Per Channel
• Audio Bit Rate:  64Kbps Per Channel

Display

• Interface: 1 HDMI, 1 VGA
• Resolution: 1920×1080, 1280×1024, 1280×720
• Multiscreen Display: When IP extension mode is not enabled: 1/4
• When IP extension mode enabled: 1/4/6
• OSD  Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

• Interface:  1 RJ-45 Port (100M)
• Max. User Access: 128 users
• Smartphone: iPhone, iPad, Android
• Interoperability ONVIF 16.12, CGI Conformant
• Video Detection and Alarm
• Alarm input: N/A
• Relay Output: N/A
• Playback and Backup
• Playback:  1/4
• Trigger Events:  Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips
• Video Detection:  Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Search Mode:  Time /Date, Alarm, MD, and Exact Search (accurate to second)
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode:  USB Device/Network

Storage

• Internal HDD:  1 SATA Port, up to 6TB capacity
• eSATA  N/A
• Auxiliary Interface
• USB:  2 USB 2.0
• RS232: N/A
• RS485:   1 Port, for PTZ Control

Electrical

• Power Supply: DC12V/2A
• Power Consumption
• (without HDD)  <10W

Construction

• Dimensions:  Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
• Device with PFH101
• Rack Mount Tray: 483mmx281mmx56mm (19.0″x11.1″x2.2″)
• Net Weight
• (without HDD): 0.9kg (2.0lb)
• Gross Weight: 1.6kg (3.5 lb)
• Installation: Desktop installation

Environmental

• Operating Conditions:  -10°C ~ +45°C (+14°F ~ +113°F), up to 55°C/131°F with case fan, 10~ 90% RH
• Storage Conditions:  -20°C ~ +70°C (-4°F ~ +158°F), 0~ 90% RH

Third-party Support

Third-party Support Dahua, Are cont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Video tec, Vivotek, and more
