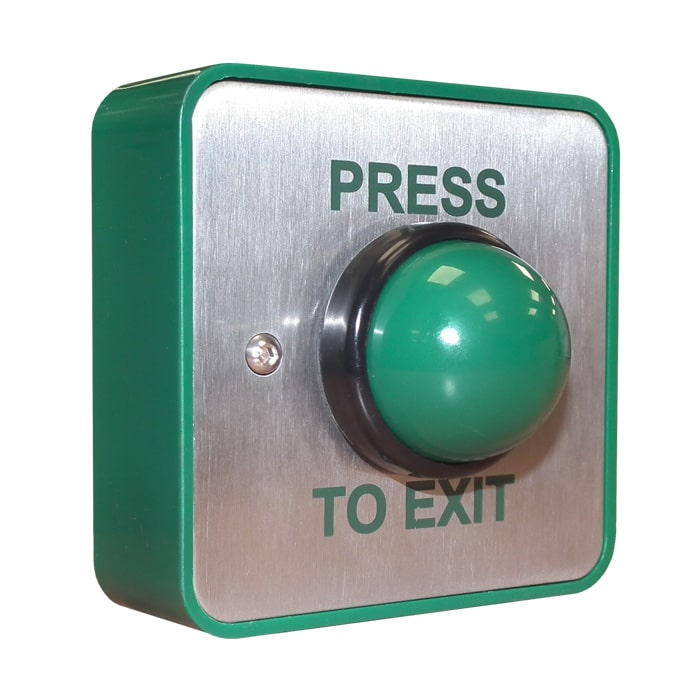

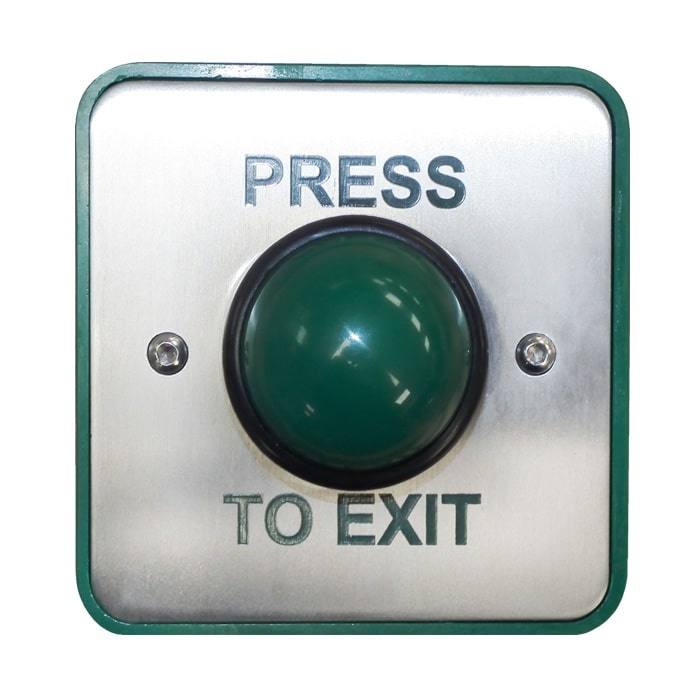

RGL EBGBWC02/PTE Green Dome Momentary Press To Exit

RGL EBGBWC02/PTE is Ideal for general/sensitive areas and Green Button rated IP66 ingress protection.

RGL EBGBWC02/PTE Specifications:

• All plastic large green button
• Momentary operation / contact
• High impact plastic back box
• Can be surface or flush fitting
• Easy clean surface
• Ideal for general/sensitive areas
• Anti-rotational mounting
• Contacts : Double pole N/O – N/C
• Output : 4 AMP contact @ 30 V AC/DC
• Wear resistant legend
• Security screws (Allen key type)
• Internal or External use
• Green Button rated IP66 ingress protection
• Silver contacts
• Operating temperature -20 to +60C
• Operating travel: 2 mm
• Contact resistance: 10 m OHM (Max)
• Dimensions: 85 x 85 x 32 (mm)
