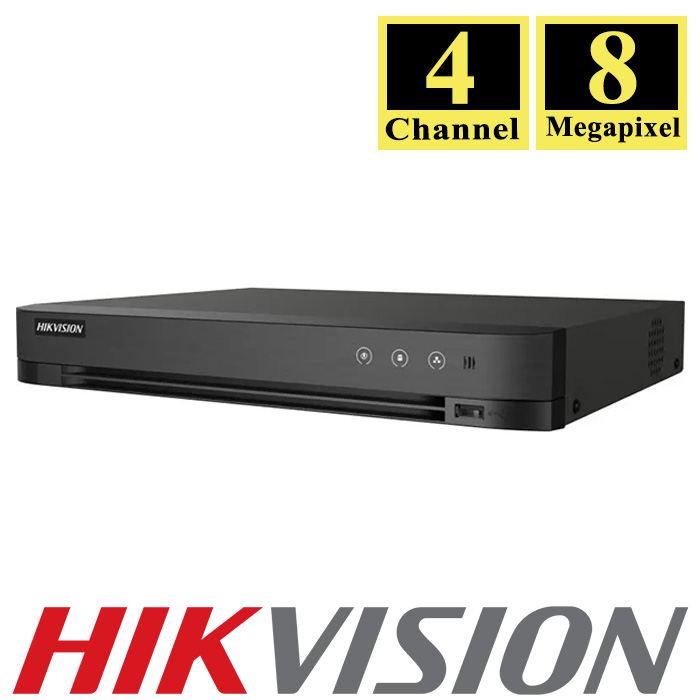

Hikvision 4 Ch 8 MP DVR iDS-7204HTHI-M1/S DVR

The Hikvision 4 Channel 8 MP DVR iDS-7204HTHI-M1/S is a high-performance digital video recorder designed for professional surveillance applications. This DVR offers advanced features and capabilities to provide reliable and efficient video recording and management. In this description, we will highlight the key features and benefits of the Hikvision iDS-7204HTHI-M1/S DVR.

The Hikvision 4 Channel 8 MP DVR iDS-7204HTHI-M1/S DVR supports up to 4 channels, allowing you to connect multiple cameras for comprehensive surveillance coverage. It is compatible with a wide range of Hikvision analog, HD-TVI, and IP cameras, providing flexibility in camera selection.

With its 8 MP resolution support, this DVR captures high-quality video footage with exceptional clarity and detail. It delivers sharp images, ensuring accurate monitoring and identification of events.

The DVR supports various recording modes, including continuous, scheduled, and motion detection-based recording. It also offers event-triggered recording, ensuring that important events are captured and stored for later review.

Equipped with advanced H.265+ video compression technology, the iDS-7204HTHI-M1/S DVR maximises storage efficiency without compromising video quality. It significantly reduces bandwidth and storage requirements, allowing for longer recording times and cost-effective storage solutions.

Featuring HDMI and VGA outputs, the DVR provides flexible display options, allowing you to connect it to a monitor or TV for live viewing and playback. It also supports remote access, enabling you to monitor your surveillance system from anywhere using a mobile device or computer.

The Hikvision 4 Channel 8 MP DVR iDS-7204HTHI-M1/S DVR offers advanced features such as motion detection, video analytics, and intelligent search for efficient and accurate video analysis. It also supports audio input/output, allowing for audio recording and two-way audio communication when connected to compatible devices.

The DVR comes with various network connectivity options, including Ethernet and USB ports. It supports network protocols for seamless integration with your existing network infrastructure.

Features:

• 4 channels and 1 HDD 1U AcuSense DVR
• False alarm reduction by human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding abilty up to 8 MP @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 8 network cameras can be connected.

HikvisioniDS-7204HTHI-M1/S Specifications:

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Line Crossing Detection/Intrusion Detection4-ch

Facial Detection

• Facial Detection And CaptureFace picture detection, face picture search

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps

  4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 16 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Video And Audio

• IP Video Input

  4-ch (up to 8-ch)

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• Total Bandwidth96 Mbps
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback4-ch
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12.5 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Video Output ModeHDMI/VGA independent output
• AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12.5 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Input

  1-ch, RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection32
• Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0

  Rear panel: 1 × USB 2.0

• Alarm In/OutN/A (optional to support)

General

• Power Supply12 VDC, 2 A
• Consumption≤ 10 W (without HDD)
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight≤ 1.8 kg (without HDD, 4.0 lb.)
