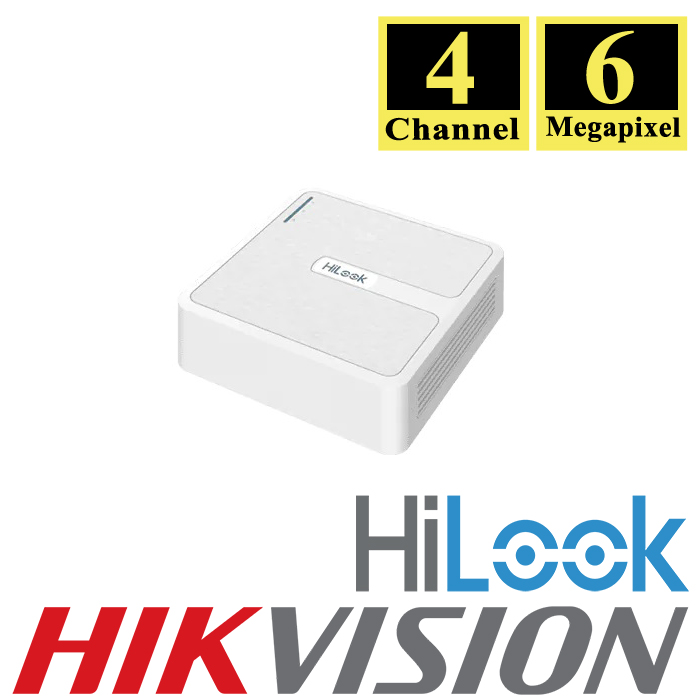

The Hilook By Hikvision 4 Channel Mini 1U PoE NVR-104H-D/4P is a compact and reliable network video recorder (NVR) designed for small-scale surveillance systems. With its advanced features and user-friendly interface, it provides a convenient solution for video recording and management.
This NVR supports up to 4 channels, allowing you to connect and record from multiple IP cameras simultaneously. It features 4 built-in PoE (Power over Ethernet) ports, eliminating the need for separate power cables for each camera. This simplifies the installation process and provides a neat and organised setup.
The Hilook By Hikvision NVR-104H-D/4P offers high-definition video recording and playback capabilities. It supports various resolutions, including Full HD, ensuring clear and detailed video footage. With its H.264+ video compression technology, it optimises storage space without compromising video quality, allowing for longer recording durations.
With its intuitive interface, the NVR allows for easy configuration and operation. You can access the NVR remotely through a web browser or a dedicated mobile app, enabling convenient monitoring from anywhere using your smartphone or computer. This remote viewing capability enhances flexibility and ensures you can keep a close eye on your property or business even when you are away.
The Hilook By Hikvision NVR-104H-D/4P offers multiple recording modes, including continuous recording, scheduled recording, and motion detection recording. This flexibility allows you to customise the recording settings based on your specific surveillance needs, optimising storage usage and ensuring crucial events are captured.
Furthermore, the NVR incorporates advanced features for enhanced security and management. It supports motion detection, which can trigger recording or notifications when motion is detected in specific areas. It also offers intelligent search capabilities, allowing you to quickly find specific footage based on time, date, or motion events.
In conclusion, the Hilook By Hikvision 4 Channel Mini 1U PoE NVR-104H-D/4P is a reliable and feature-rich NVR that offers efficient video recording, easy management, and remote access. Its compact size, built-in PoE ports, high-definition recording, and user-friendly interface make it an ideal choice for small-scale surveillance systems. Enhance your security setup with this NVR to ensure effective and convenient video recording and monitoring.
Features:
- H.265+/H.265/H.264+/H.264 video compression
- Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 4-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous outpu
Hilook NVR-104H-D/4P Specifications:
Video And Audio
- IP Video Input
- 4-ch
- Up to 6 MP resolution
- Incoming Bandwidth 40 Mbps
- Outgoing Bandwidth 60 Mbps
- HDMI Output 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode HDMI/VGA simultaneous output
Decoding
- Decoding FormatH.265+/H.265/ H.264+/H.264
- Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream Type Video, Video & Audio
Network
- Remote Connection 16
- Network Protocol TCP/IP, DHCP, HiLook , DNS, DDNS, NTP, SADP, SMTP, UPnPâ„¢
- Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE
- Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power ≤ 36 W
- Standard IEEE 802.3 af/at
Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 6 TB capacity for each disk
- Alarm In/Out N/A
- USB Interface Rear panel: 2 × USB 2.0
General
- Power Supply48 VDC, 1 A
- Consumption≤ 10 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)200 × 200 × 48 mm (7.9″ × 8.1″ × 1.9″)
- Weight≤ 1 kg (without HDD, 2.2 lb.)
Certification
- CEEN50130-4, EN 61000-3-2,EN 61000-3-3
